| Operating temperature | -40 °C … +70 °C |
| Bending radius | 10 x D |
| Impedance | 75 ± 3 Ω |
| Capacitance | 52 ± 2 pF/m |
| Velocity of propagation | %85 ± 2 |
| Insulation resistance | 2 G Ω x km |
| Operating voltage max. | 2000 V |
| Test voltage | 5000 V |
| Standards | EN 50117, IEC 61196 |
| EU declaration of conformity | LVD Low Voltage Directive 2014/35/EU RoHS Restriction of Hazardous Substances 2011/65/EU |
| Satellite distribution2) | 2150MHz – 67m |
| VHF/UHF distribution3) | 860MHz – 167m |
| S-band Cable TV distribution3) | 470MHz – 230m |
| Attenuation @20°C | 50 MHz 3,15 dB/100m 200 MHz6.18 dB/100m 470 MHz 9,60dB/100m 860 MHz13.29 dB/100m 1000 MHz 14,43 dB/100m 2150 MHz22.25 dB/100m 2400 MHz 23,73 dB/100m 3000 MHz27.06dB/100m |
| Return loss1) | 5-470 MHz > 23 dB 470-1000MHz > 20 dB 1000-2000 MHz > 18 dB 2000-3000 MHz > 16 dB |
| Screen Attenuation | 30-1000MHz ≥ 95 dB 1000-2000 MHz ≥ 85 dB 2000-3000 MHz ≥ 75 dB |
| Transfer Impedance | 5-30MHz ≤ 2,5 mΩ/m |
| Screening Class
Segregation class |
Class A+
“d” EN 50174-2 |
Utilising physical foam insulation technology, cables have a rated impedance of 75 ohms and comply with EN 50117. They are primarily used in Cable TV, individual/central satellite distribution and CCTV security camera systems. Thanks to the polyethylene sheath, they are preferred for outdoor and underground installations.

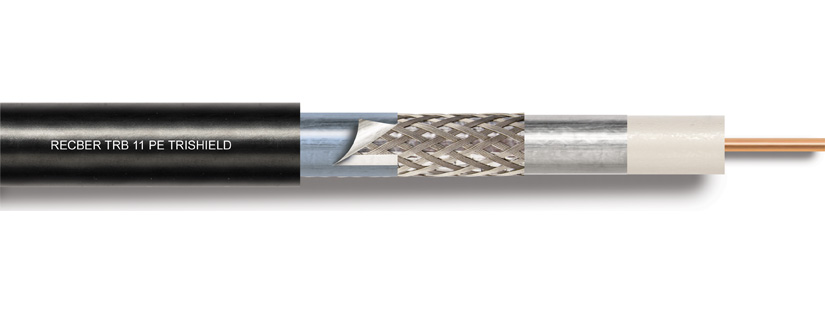

Conductor Electrolytic copper wire, Ø 1.63 mm (AWG14) Insulation Physical foam PE, Ø 7.11 mm 70°C, EN 50290-2-23 Screen Al-Pet-Sy foil min. 100% coverage Tinned braided copper wire Al-Pet foil min. 100% coverage Sheath PE – RAL 9011 Black, Ø 10.3 mm 80°C, EN 50290-2-24
