| Operating temperature | -30 °C … +70 °C |
| Bending radius | 10 x D |
| Impedance | 75 ± 3 Ω |
| Capacitance | 52 ± 2 pF/m |
| Velocity of propagation | %86 ± 2 |
| Insulation resistance | 2 G Ω x km |
| Operating voltage max. | 1300 V |
| Test voltage | 3000 V |
| Standards | EN 50117, IEC 61196 |
| Fire performance
EU declaration of conformity |
Vertical flame propagation EN 60332-1-2 Corrosive gas EN 60754-1/2 Smoke density EN 61034-2
LVD Low Voltage Directive 2014/35/EU RoHS Restriction of Hazardous Substances 2011/65/EU |
| Satellite distribution2) | 2150MHz – 67m |
| VHF/UHF distribution3) | 860MHz – 167m |
| S-band Cable TV distribution3) | 470MHz – 230m |
| Attenuation @20°C | 50 MHz 4,30 dB/100m 200 MHz 8,40 dB/100m 470 MHz 13,0 dB/100m 860 MHz 18,0 dB/100m 1000 MHz 19,5 dB/100m 2150 MHz 29,7 dB/100m 2400 MHz 31,7 dB/100m 3000 MHz 36,0 dB/100m |
| Return loss1) | 5-470 MHz > 23 dB 470-1000MHz > 20 dB 1000-2000 MHz > 18 dB 2000-3000 MHz > 16 dB |
| Screen Attenuation | 30-1000MHz ≥ 95 dB 1000-2000 MHz ≥ 85 dB 2000-3000 MHz ≥ 75 dB |
| Transfer Impedance | 5-30MHz ≤ 2,5 mΩ/m |
| Screening Class
Segregation class |
Class A+
“d” EN 50174-2 |
Utilising physical foam insulation technology, cables have a rated impedance of 75 ohms and comply with EN 50117. They are primarily used in Cable TV, individual/central satellite distribution and CCTV security camera systems. Cables are composed of halogen-free materials (flame retardant materials that do not emit toxic gas or black dense smoke that lowers visibility). They are primarily used in highly populated areas that should have fire resistance, such as housing estates, hotels, shopping malls and smart buildings.

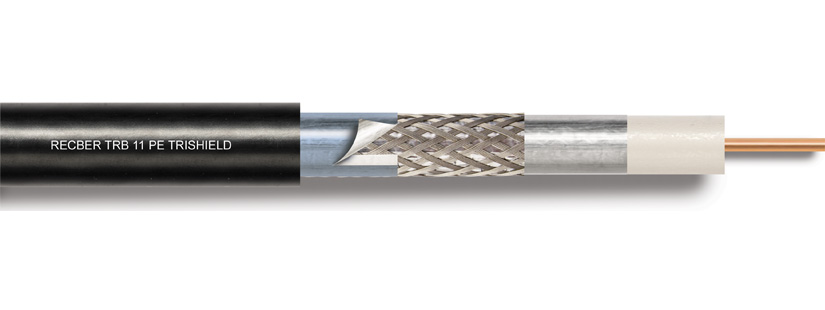

Conductor Electrolytic copper wire, Ø 1.63 mm (AWG14) Insulation Physical foam PE, Ø 7.11 mm 70°C, EN 50290-2-23 Screen Al-Pet-Sy foil min. 100% coverage Tinned braided copper wire Al-Pet foil min. 100% coverage Sheath HFFR – RAL 9011 Black, Ø 10.3 mm 70°C, EN 50290-2-27
