| Temperature range | fixed -20°C …+60°C
flexing 0°C …+50°C |
| Bending radius | fixed min. 4 x D
flexing min. 8 x D |
| Tensile strength
Crushing strength Impact strength |
max. 135 N
1000 N/10 cm 10 impacts |
|
Conductor resistance Resistance imbalance
Capacitance Capacity imbalance Rated impedance Velocity of propagation Propagation delay max. Signal delay max. |
max. 60 Ω/km
max %2
min. 5000 MΩ x m 42 pF/m max. 1600 pF/km 100 ± 5 Ω @100 MHz 78-80% 430 ns/100 m max. 25 ns/100 m |
| Insulation resistance
TCL min. Coupling attenuation Transfer impedance Segregation class |
min. 5000 MΩ x m
“Level 2” “Type Ib” “Class 1” “d” EN 50174-2 |
| Test voltage | 1000 V |
| Operating voltage max. | max 72 V |
| Standards | ISO/IEC 11801 2nd ed., IEC 61156-7
EN 50173-1 |
| Fire performance | Vertical flame propagation EN 60332-1-2 (LSZH-PVC) Corrosive gas EN 60754-1/2 (LSZH) Smoke density EN 61034-2 (LSZH) |
| EU declaration of conformity | LVD Low Voltage Directive 2014/35/EU RoHS Restriction of Hazardous Substances 2011/65/EU |

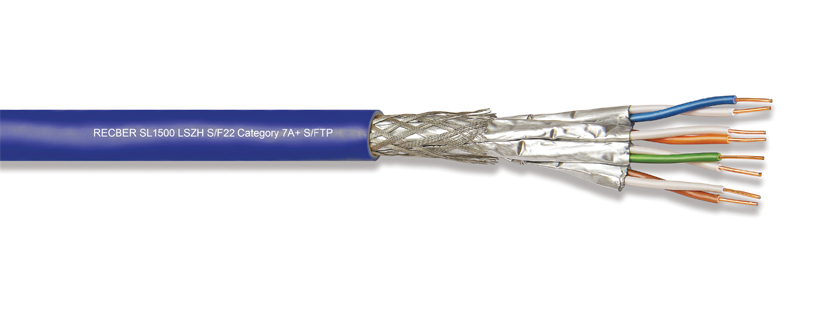

Utilising physical foam insulation technology, this data cable range is designed for analogue and digital signal transmission in audio, video and data applications supporting 1.2 GHz, 10 Gbit/s 10 Gigabit Ethernet. Cables meet the requirements of structural cabling standards including ANSI EIA/TIA 568, ISO/ IEC 11801 and EN 50173 Class FA. IEEE 802.3:10Base-T; 100Base-T; 1000Base-T; 10GBase-T IEEE 802.5 16 MB; ISDN; TPDDI; ATM Power over Ethernet (PoE) / PoE+
Conductor Electrolytic copper wire, Ø 22AWG Insulation Physical foam PE, in compliance with TIA 568 insulation colour coding 70°C, EN 50290-2-23 Screen (Double) Al-Pet tape min. 100% coverage Drain wire Tinned copper drain wire, Ø 26AWG Screen Tinned braided copper wire, 40% coverage Sheath LSZH/LS0H – RAL 5002 Blue, Ø 7.8 mm 70°C, EN 50290-2-27 PVC – RAL 7001 Grey, Ø 7.8 mm TM51 70°C, EN 50290-2-22 PE – RAL 9011 Black, Ø 7.8 mm 80°C, EN 50290-2-24
