| Temperature range | fixed -30°C …+70°C
flexing 0°C …+50°C |
| Bending radius min. | fixed min. 7.5 x D f
lexing min. 15 x D |
| Conductor resistance | 0.50 mm² max. 39.0 Ω/km
0.75 mm² max. 26.0 Ω/km 1.0 mm² max. 19.5 Ω/km 1.5 mm² max. 13.3 Ω/km 2.5 mm² max. 7.98 Ω/km |
| Insulation resistance min. | 20 MΩ x km |
| Test voltage | 2500 V |
| Operating voltage max. | 300/500 V |
| Standards | EN 50525-2-51 |
| Fire performance | Vertical flame propagation EN 60332-1-2
Corrosive gas EN 60754-1/2 Smoke density EN 61034-2 |
| EU declaration of conformity | LVD Low Voltage Directive 2014/35/EU
RoHS Restriction of Hazardous Substances 2011/65/EU |

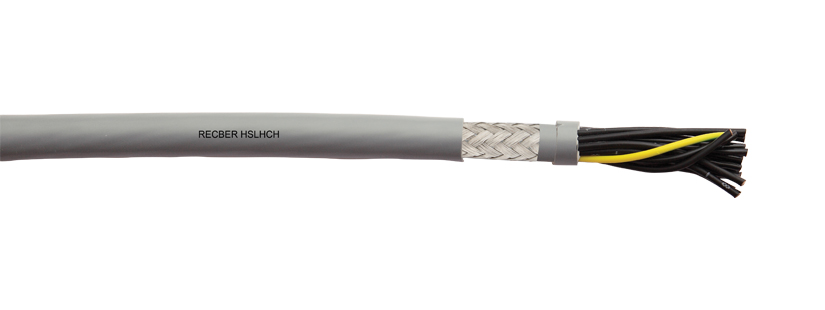

It is a flexible halogen-free insulated and sheathed control cable with number-coded cores and braided, tinned copper screen. Used in dry or wet interior areas not exposed to mechanical strain. Preferred for mobile installations and confined spaces thanks to its flexible and thin design. Used for measurement and control functions in electronic control systems, production and assembly lines and engineering projects. Cables are composed of halogen-free materials (flame retardant materials that do not emit toxic gas or black dense smoke that lowers visibility). They are primarily used in highly populated areas that should have fire resistance. HSLHCH-OZ: black core with white number codes HSLHCHJZ: ground protection conductor (yellow/green), black core with white number codes
Conductor
Stranded copper wire Class 5, IEC 60228
Insulation HFFR, in compliance with EN 50334 insulation colour coding, black core with white number codes TI6 EN 50363-7
Inner Sheath HFFR TM7 EN 50363-8
Screen Braided screen made of tinned copper wires
Sheath HFFR – RAL 7001 Grey TM7 EN 50363-
