CCTV PE RG 6 U/4

Category:
Operating Temperature -30°C …+70°C
Bending radius min. min. 10 x D
Impedance

Capacitance

Velocity of propagation

75 ± 3 Ω

52 ± 2 pF/m

(84 ± 2)%

Conductor resistance max. 0.22 mm² 96 Ω/km

0.50 mm² 39 Ω/km

0.75 mm² 26 Ω/km

1.0 mm² 19.5 Ω/km

1.50 mm² 13.3 Ω/km

2.50 mm² 7.98 Ω/km

Insulation resistance min. 2 GΩ x km
Test voltage 3000 V
Operating voltage max. 1300 V
Standards TSE K 212
Attenuation @20°C max. 50 MHz 4.74 dB/100 m 200 MHz 9.29 dB/100 m 470 MHz 14.35 dB/100 m 860 MHz 19.72 dB/100 m 1000 MHz 21.37 dB/100 m

Return loss 5-470 MHz > 20 dB 470-1000 MHz > 18 dB

EU declaration of conformity LVD Low Voltage Directive 2014/35/EU RoHS Restriction of Hazardous Substances 2011/65/EU

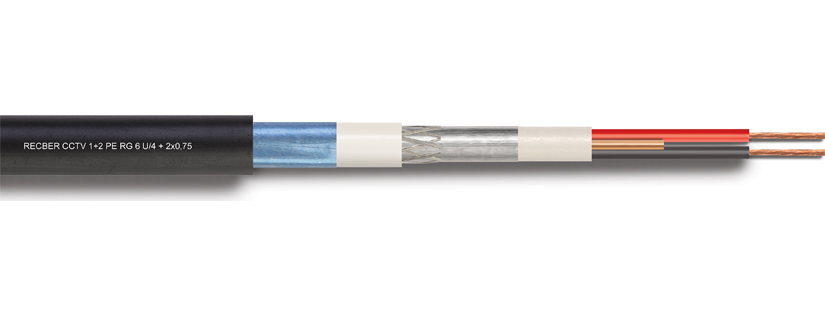

Utilising physical foam insulation technology, cables have a rated impedance of 75 ohms and are used in outdoor and underground CCTV closed circuit camera applications. Provides simultaneous transmission of video, power, audio and control signals.

Conductor Electrolytic copper wire, Ø 1.02 mm (AWG18)

Insulation Physical foam PE, Ø 4.60 mm, 70°C, EN 50290-2-23

Screen Al-Pet foil min. 100% coverage, Aluminium braided wire

Inner Sheath PVC, TM51 70°C, EN 50290-2-22

Conductor Stranded copper wire, 0.75 mm², Class 5, IEC 60228

Insulation PVC, Black-Red, TI52 EN 50290-2-21

Conductor Stranded copper wire, 0.50 mm², Class 5, IEC 60228

Insulation PVC, Yellow-Blue, TI52 EN 50290-2-21

Sheath PE – RAL 9011 Black, 80°C, EN 50290-2-24
