| Operating Temperature | -30°C …+70°C |
| Bending radius | min. 10 x D |
| Impedance
Capacitance Velocity of propagation |
75 ± 3 Ω
54 ± 2 pF/m (82 ± 2)% |
| Conductor resistance | max. 0.22 mm² 96 Ω/km
0.50 mm² 39 Ω/km 0.75 mm² 26 Ω/km 1.0 mm² 19.5 Ω/km |
| Insulation resistance min. | min. 2 GΩ x km |
| Test voltage | 2500 V |
| Operating voltage max. | MAX 1000 v |
| Standards | TSE K 212 |
| Fire performance | Vertical flame propagation EN 60332-1-2 Corrosive gas EN 60754-1/2 Smoke density EN 61034-2 |
| EU declaration of conformity | LVD Low Voltage Directive 2014/35/EU RoHS Restriction of Hazardous Substances 2011/65/EU |
Attenuation @20°C
max. 50 MHz 5.95 dB/
100 m 200 MHz 11.71 dB/
100 m 470 MHz 18.08 dB/
100 m 860 MHz 24.79 dB/
100 m 1000 MHz 26.85 dB/
100 m Return loss 5-470 MHz > 20 dB 470-1000 MHz > 18 dB

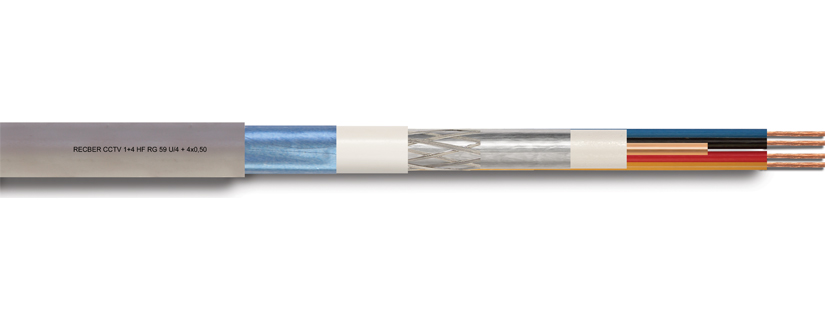

Utilising physical foam insulation technology, cables have a rated impedance of 75 ohms and are used in indoor and dry environment CCTV closed circuit camera applications. Provides simultaneous transmission of video, power, audio and control signals. Cables are composed of halogen-free materials (flame retardant materials that do not emit toxic gas or black dense smoke that lowers visibility). They are primarily used in highly populated areas that should have fire resistance, such as housing estates, hotels, shopping malls and smart buildings.
Conductor Electrolytic copper wire, Ø 0.81 mm (AWG20)
Insulation Physical foam PE, Ø 3.70 mm, 70°C, EN 50290-2-23
Screen Al-Pet foil min. 100% coverage, Aluminium braided wire
Inner Sheath HFFR 70°C, EN 50290-2-27 Conductor Stranded copper wire, 0.75 mm², Class 5, IEC 60228
Insulation HFFR, Black-Red, 70°C EN 50290-2-26
Conductor Stranded copper wire, 0.22 mm², Class 5, IEC 60228
Insulation HFFR, Yellow-Blue, 70°C EN 50290-2-26 Sheath HFFR – RAL 7001 Grey, 70°C EN 50290-2-27
